• BYG102-N8 Driver Type : Bass Guitar Speaker
  Size : 250mm (10inch)
  Magnet : Neodymium

  BYG102-N8

  Rated Power Handling : 200W (RMS)
  Characteristic Sensitivity : 95.5dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 54Hz ± 20%
  Frequency Range : fs ~ 5.2kHz ± 20%
  Voice Coil Inner Diameter : Ø52 (mm)
  Net Weight : - g ( - oz)


• BYG123-N8 Driver Type : Bass Guitar Speaker
  Size : 300mm (12inch)
  Magnet : Neodymium

  BYG123-N8

  Rated Power Handling : 400W (RMS)
  Characteristic Sensitivity : 98.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 52Hz ± 20%
  Frequency Range : fs ~ 3kHz ± 20%
  Voice Coil Inner Diameter : Ø75.5 (mm)
  Net Weight : - g ( - oz)


• BYG124-N8 Driver Type : Bass Guitar Speaker
  Size : 300mm (12inch)
  Magnet : Neodymium

  BYG124-N8

  Rated Power Handling : 800W (RMS)
  Characteristic Sensitivity : 98.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 50Hz ± 20%
  Frequency Range : fs ~ 1.5kHz ± 20%
  Voice Coil Inner Diameter : Ø100 (mm)
  Net Weight : - g ( - oz)


• BYG153-N8 Driver Type : Bass Guitar Speaker
  Size : 380mm (15inch)
  Magnet : Neodymium

  BYG153-N8

  Rated Power Handling : 200W (RMS)
  Characteristic Sensitivity : 99.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 42Hz ± 20%
  Frequency Range : fs ~ 2.8kHz ± 20%
  Voice Coil Inner Diameter : Ø75.5 (mm)
  Net Weight : - g ( - oz)


• BH17G012L Driver Type : Woofer
  Size : 26x95mm (1x3.7inch)
  Magnet : Neodymium


  BH17G012L

  Rated Power Handling : 5W (RMS)
  Characteristic Sensitivity : 82.5dB ± 2dB (1W/1m)
  Nominal Impedance : 7Ω
  Free Air Resonance Frequency, fs : 200Hz ± 20%
  Frequency Range : fs ~ 15kHz ± 20%
  Voice Coil Inner Diameter : 20.3*9.0 (mm)
  Net Weight : 89g (3.1oz)



• BT32H40 Driver Type : Horn Speaker
  Size : 32mm (1.25inch)
  Magnet : Ferrite


  BT32H40

  Rated Power Handling : 20W (RMS)
  Characteristic Sensitivity : 106.5dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 1000Hz ± 20%
  Frequency Range : fs ~ 20kHz ± 20%
  Voice Coil Inner Diameter : Ø32.6 (mm)
  Net Weight : 550g (19.4oz)



• BH12BG200 Driver Type : Guitar Speaker
  Size : 300mm (12inch)
  Magnet : Ferrite


  BH12BG200

  Rated Power Handling : 200W (RMS)
  Characteristic Sensitivity : 95.0dB ± 2dB (1W/1m)
  Nominal Impedance : 16Ω
  Free Air Resonance Frequency, fs : 100Hz ± 20%
  Frequency Range : fs ~ 6kHz ± 20%
  Voice Coil Inner Diameter : Ø51 (mm)
  Net Weight : 4000g (141oz)



• BH12BG150 Driver Type : Guitar Speaker
  Size : 300mm (12inch)
  Magnet : Ferrite


  BH12BG150

  Rated Power Handling : 150W (RMS)
  Characteristic Sensitivity : 94.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 100Hz ± 20%
  Frequency Range : fs ~ 9kHz ± 20%
  Voice Coil Inner Diameter : Ø45 (mm)
  Net Weight : 3400g (120oz)



• BH12BG075 Driver Type : Bass Guitar Speaker
  Size : 300mm (12inch)
  Magnet : Ferrite


  BH12BG075

  Rated Power Handling : 75W (RMS)
  Characteristic Sensitivity : 89.5dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 43Hz ± 20%
  Frequency Range : fs ~ 7kHz ± 20%
  Voice Coil Inner Diameter : Ø38 (mm)
  Net Weight : 2000g (70.5oz)



• BH10BG050 Driver Type : Guitar Speaker
  Size : 250mm (10inch)
  Magnet : Ferrite


  BH10BG050

  Rated Power Handling : 50W (RMS)
  Characteristic Sensitivity : 92.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 60Hz ± 20%
  Frequency Range : fs ~ 7kHz ± 20%
  Voice Coil Inner Diameter : Ø25 (mm)
  Net Weight : 1190g (41.9oz)



• BH8BG050 Driver Type : Bass Guitar Speaker
  Size : 200mm (8inch)
  Magnet : Ferrite


  BH8BG050

  Rated Power Handling : 50W (RMS)
  Characteristic Sensitivity : 85.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 60Hz ± 20%
  Frequency Range : fs ~ 6kHz ± 20%
  Voice Coil Inner Diameter : Ø30 (mm)
  Net Weight : 920g (32.4oz)



• BH8BG040 Driver Type : Bass Guitar Speaker
  Size : 200mm (8inch)
  Magnet : Ferrite


  BH8BG040

  Rated Power Handling : 40W (RMS)
  Characteristic Sensitivity : 87.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 87Hz ± 20%
  Frequency Range : fs ~ 9kHz ± 20%
  Voice Coil Inner Diameter : Ø30 (mm)
  Net Weight : 900g (31.7oz)



• BH8BG030 Driver Type : Guitar Speaker
  Size : 200mm (8inch)
  Magnet : Ferrite


  BH8BG030

  Rated Power Handling : 30W (RMS)
  Characteristic Sensitivity : 90.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 110Hz ± 20%
  Frequency Range : fs ~ 12kHz ± 20%
  Voice Coil Inner Diameter : Ø18.4 (mm)
  Net Weight : 595g (20.9oz)



• BH8BG025 Driver Type : Guitar Speaker
  Size : 200mm (8inch)
  Magnet : Ferrite


  BH8BG025

  Rated Power Handling : 25W (RMS)
  Characteristic Sensitivity : 91.5dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 200Hz ± 20%
  Frequency Range : fs ~ 10kHz ± 20%
  Voice Coil Inner Diameter : Ø18.4 (mm)
  Net Weight : 565g (19.9oz)



• BH6BG020 Driver Type : Guitar Speaker
  Size : 165mm (6.5inch)
  Magnet : Ferrite


  BH6BG020

  Rated Power Handling : 20W (RMS)
  Characteristic Sensitivity : 88.5dB ± 2dB (1W/1m)
  Nominal Impedance : 4Ω
  Free Air Resonance Frequency, fs : 130Hz ± 20%
  Frequency Range : fs ~ 10kHz ± 20%
  Voice Coil Inner Diameter : Ø25.4 (mm)
  Net Weight : 488g (17.2oz)

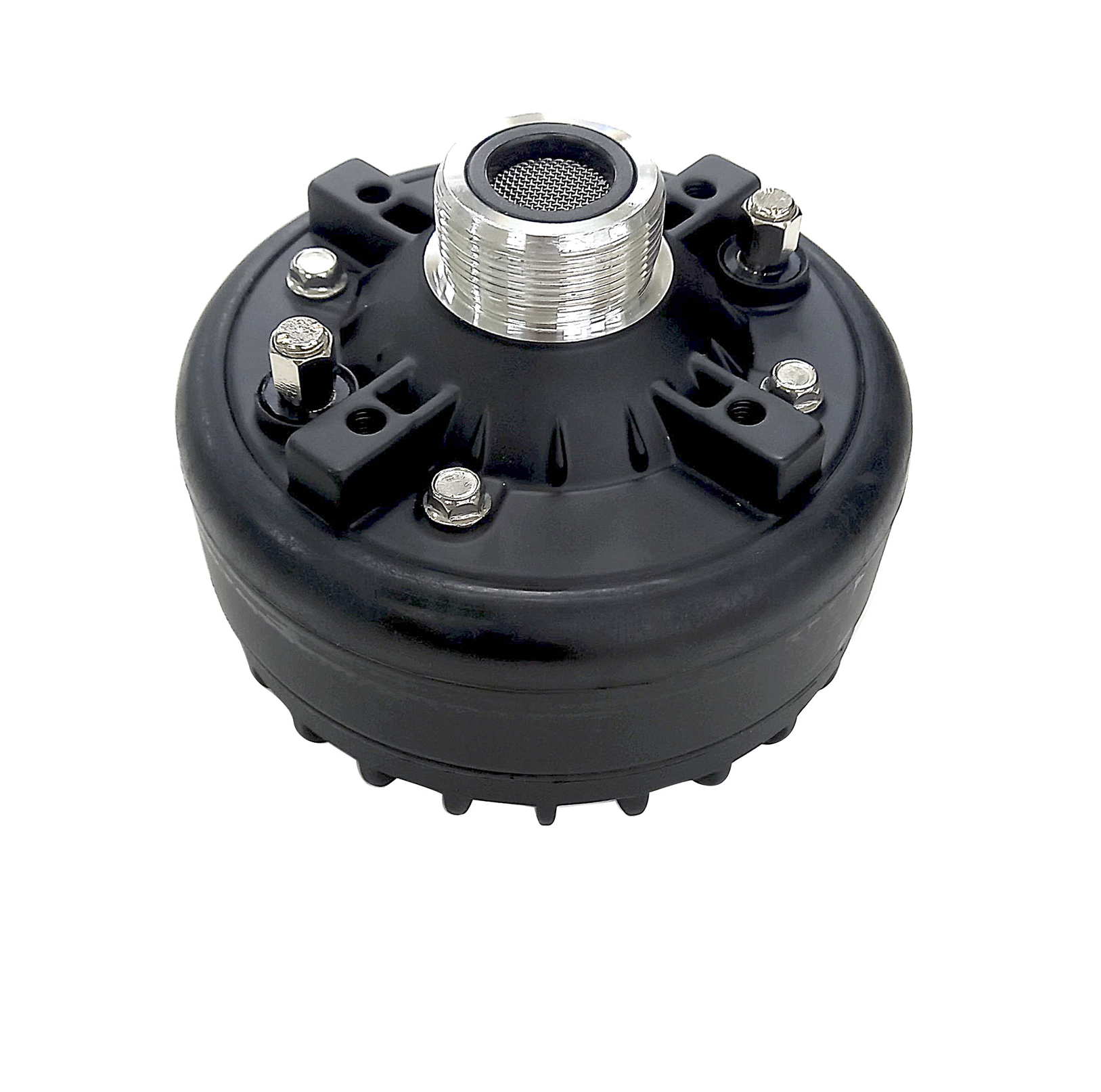

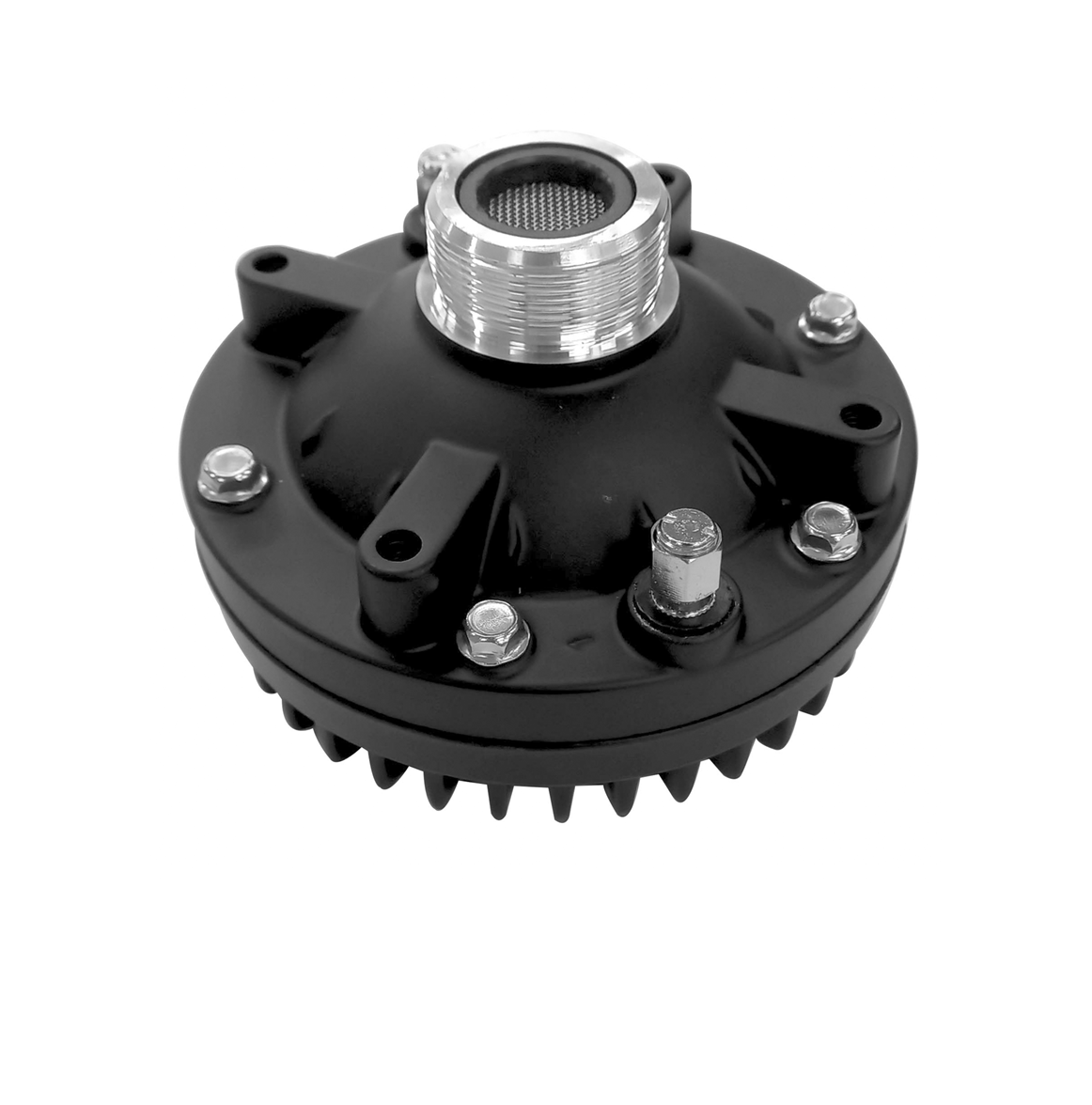

• BD120C150 Driver Type : Compression Driver
  Size : 118mm (4.6inch)
  Magnet : Neodymium


  BD120C150

  Rated Power Handling : 150W (RMS)
  Characteristic Sensitivity : 110.0dB ± 2dB (1W/1m)
  Nominal Impedance : 18Ω
  Free Air Resonance Frequency, fs : 500Hz ± 20%
  Frequency Range : fs ~ 5kHz ± 20%
  Voice Coil Inner Diameter : Ø66.08 (mm)
  Net Weight : 2500g (88oz)



• BH18BS1000 Driver Type : SR Series (Sound Reinforcement)
  Size : 460mm (18inch)
  Magnet : Ferrite


  BH18BS1000

  Rated Power Handling : 1000W (RMS)
  Characteristic Sensitivity : 97.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 31Hz ± 20%
  Frequency Range : fs ~ 2.5kHz ± 20%
  Voice Coil Inner Diameter : Ø99.2 (mm)
  Net Weight : 11900g (406oz)



• BH18BS900 Driver Type : SR Series (Sound Reinforcement)
  Size : 460mm (18inch)
  Magnet : Ferrite

  BH18BS900

  Rated Power Handling : 900W (RMS)
  Characteristic Sensitivity : 97.0dB ± 2dB (1W/1m)
  Nominal Impedance : 6Ω
  Free Air Resonance Frequency, fs : 31Hz ± 20%
  Frequency Range : fs ~ 2.5kHz ± 20%
  Voice Coil Inner Diameter : Ø99.2 (mm)
  Net Weight : 11500g (406oz)



• BH15BS603 Driver Type : SR Series (Sound Reinforcement)
  Size : 380mm (15inch)
  Magnet : Ferrite


  BH15BS603

  Rated Power Handling : 600W (RMS)
  Characteristic Sensitivity : 97.0dB ± 2dB (1W/1m)
  Nominal Impedance : 8Ω
  Free Air Resonance Frequency, fs : 38Hz ± 20%
  Frequency Range : fs ~ 3kHz ± 20%
  Voice Coil Inner Diameter : Ø75.5 (mm)
  Net Weight : 6800g (240oz)



• BH15BS602 Driver Type : SR Series (Sound Reinforcement)
  Size : 380mm (15inch)
  Magnet : Ferrite


  BH15BS602

  Rated Power Handling : 600W (RMS)
  Characteristic Sensitivity : 97.0dB ± 2dB (1W/1m)
  Nominal Impedance : 6Ω
  Free Air Resonance Frequency, fs : 40Hz ± 20%
  Frequency Range : fs ~ 3kHz ± 20%
  Voice Coil Inner Diameter : Ø75.5 (mm)
  Net Weight : 6600g (233oz)
